Torque Converter Diagnostics via OBD-II: P0741, TCC Slip, Live Data

The torque converter is the key element of a conventional automatic transmission. Most owners only discover torque converter problems when the transmission has already failed. OBD-II allows early warning detection long before a costly rebuild becomes necessary.

What Is a Torque Converter and Why Diagnose It?

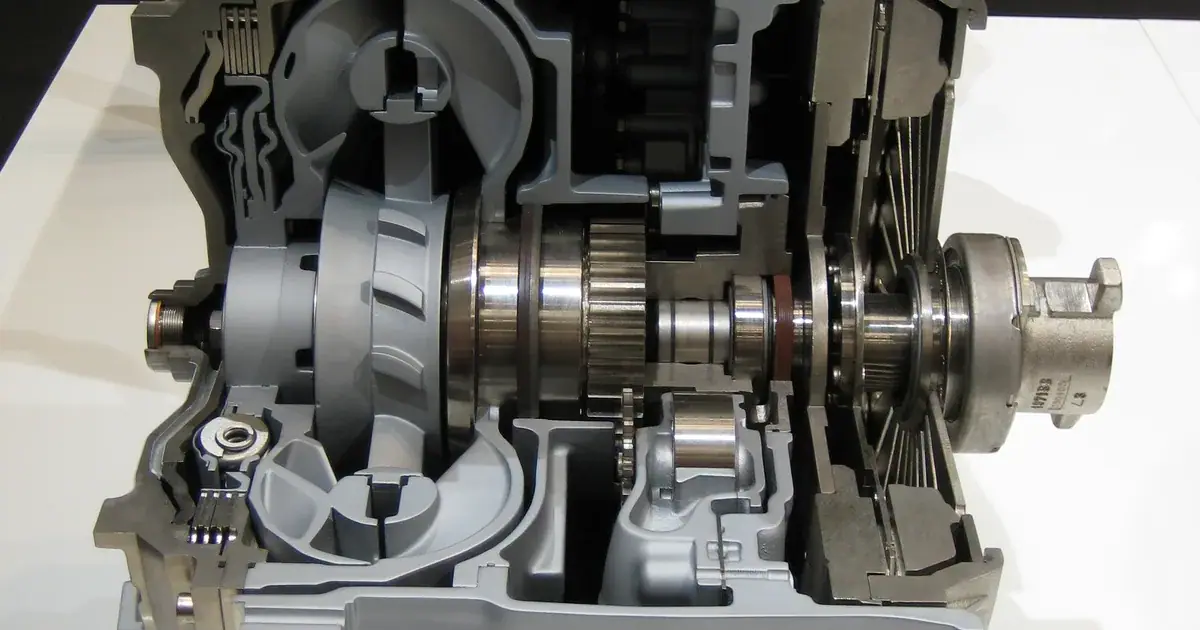

The torque converter acts as the clutch in an automatic gearbox: it transfers torque from the engine to the transmission via hydraulic fluid. Modern automatics also have a Torque Converter Clutch (TCC) — under specific conditions, the converter “locks up” and transfers torque mechanically (eliminating hydraulic losses).

Signs of a failing torque converter:

• Shudder or vibration at 40–55 mph (TCC lockup speed)
• Delayed gear changes
• ATF overheating (temperature above 110°C)
• Slipping under acceleration

---

P0741 — Torque Converter Clutch: Slip

The most common TC-related code.

What it means: The difference between the transmission input shaft RPM and engine RPM with TCC engaged exceeds the allowable threshold (typically 50–100 RPM).

Causes:

• Worn TCC friction material (lining worn away)
• Clogged TCC solenoid valve
• Low ATF level or degraded ATF (viscosity too low)

Live Data:

• Engine Speed (RPM) vs Turbine Shaft Speed (RPM) with TCC locked: difference should be < 50 RPM
• TCC Slip % (where supported): 0% = fully locked; > 5% = TCC slipping
• TCC Status: Locked / Unlocked / Slipping

---

P0740 — Torque Converter Clutch Solenoid: Circuit Fault

Causes:

• Failed TCC solenoid (electrical open or short)
• Broken wiring to solenoid
• Internal valve body fault

Diagnostics:

• TCC Solenoid Current or TCC Solenoid Duty Cycle in Live Data: at TCC engagement should be 70–100%; if 0% = solenoid not receiving signal

---

Live Data: The Full Torque Converter Picture

ATF Temperature

The most important preventive parameter:

• Normal driving < 90°C ideal; < 110°C acceptable

• 120°C → risk zone (ATF starts degrading)

• 130°C → stop and let it cool; check the cause

Causes of overheating:

• Clogged ATF cooler (in radiator or external cooler)
• Towing with failing torque converter (slip = heat)
• TCC not engaging → all power transferred via fluid = heat

Torque Converter Slip RPM

Some platforms give this as a calculated value:

• 0–20 RPM slip → TCC fully locked ✓
• 50–100 RPM slip → partial slip or worn TCC

• 200 RPM slip → significant wear or solenoid failure

Transmission Output Speed vs Input Speed

At a fixed gear ratio and constant speed, this ratio should be stable. Fluctuations = converter or clutch pack issue.

---

Torque Converter Shudder: How OBD-II Helps

Shudder (vibration at TCC lockup speed) — often misdiagnosed as engine misfire. OBD-II distinction:

• If Misfire Count all 0 during shudder → not an ignition issue
• If TCC Slip fluctuates rhythmically during shudder → TCC friction material contaminated or worn
• If shudder stops with TCC disabled (service function) → confirmed torque converter

Solution before replacement: High-quality ATF flush + GM TCC additive (or manufacturer equivalent). Sometimes resolves mild shudder.

---

P0894 — Transmission Component Slipping

General “slipping” code that can indicate:

• Torque converter clutch slip (TCC)
• Clutch pack slip within the gearbox

Differentiate via Live Data:

• TCC Slip: if > 0 at highway cruise → TCC origin
• Gear Ratio Commanded vs Actual: if different → clutch pack inside gearbox

---

ATF Change Intervals (Manufacturer Claims vs Reality)

Manufacturer	Official Claim	Workshop Reality
ZF 8HP	”Lifetime”	Change every 60,000 km
GM Hydramatic	”Lifetime”	Change every 50,000 km
Aisin (Toyota)	160,000 km	Change every 60,000 km
Ford SelectShift	”Lifetime”	Change every 60,000 km

“Lifetime” fluid assumes perfect driving conditions. Real-world city driving = more heat cycles = faster ATF degradation.

---

Summary: Torque Converter Diagnostic Algorithm

1. Check ATF Temperature in Live Data — if above 110°C regularly → cooling issue
2. On-road test at 40–55 mph: check TCC Slip RPM at lockup speed
3. If shudder present: confirm Misfire Count = 0 (rule out engine)
4. Active test: TCC Enable/Disable service function — if shudder changes → TC confirmed

Early diagnosis of TCC issues costs £50–£100 (ATF flush + additive). Ignoring it until failure costs £1,500–£4,000 (transmission rebuild).
