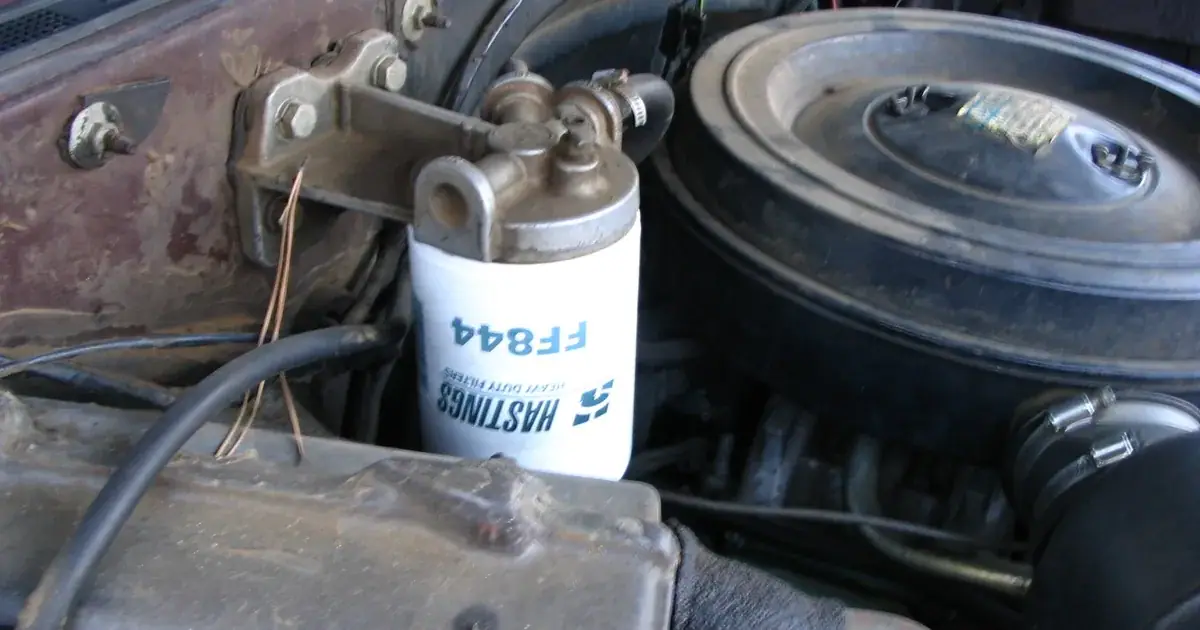

The fuel filter: symptoms of a blockage and why diesel is a special case

The fuel filter is easy to miss on a service schedule and hard to miss in the way a car behaves once it is blocked.

The symptoms

Hesitation under acceleration — enough fuel for gentle driving, not enough at open throttle; the general case is covered in the hesitation article.

A speed ceiling — the car reaches a limit and goes no further.

Shunting at steady throttle on a main road.

Hard starting, especially after standing.

Stalling at idle or on lifting off.

Worse in winter than in summer — the fuel is thicker, and on a diesel it also waxes.

Why it destroys the pump

Practically the most important part of the subject.

A fuel pump is cooled and lubricated by the fuel itself. A blocked filter creates restriction — the pump works overloaded, heats up, and wears.

The consequence: saving on a filter is paid for with a pump costing several times more. That is the standard outcome of “cheaper not to change it”.

Diesel is a special case

The fuel lubricates the high-pressure pump and injectors. That is not an added benefit, it is a condition of operation.

Water does not lubricate. It causes scoring on precision surfaces — the most expensive components in the engine; covered in the common rail injector article.

So on a diesel the filter is also a water separator. It has a sediment bowl that must be drained and a water sensor whose warning must not be ignored.

Waxing in winter: in hard frost, summer-grade diesel thickens and blocks the filter completely. The car starts and stalls. That is not a filter failure — it is the wrong fuel for the season.

What diagnostics shows

Fuel rail pressure — commanded versus actual. A shortfall under load is direct evidence of insufficient supply. On a diesel that means codes P0087 and P0088.

Fuel trims — a steady positive value means the module is compensating for a fuel shortage.

Pump load and duty — on cars where the parameter is available.

The water-in-filter sensor — its state in live data.

Freeze frame — the revs and load the fault set at; a blocked filter produces a characteristic picture at high load.

When to change it

The schedule is the baseline.

Earlier if:

• You fill up wherever is convenient with no consistency.
• There has been a bad fuel incident; covered in the fuel article.
• The car stood for a long time — condensate and sediment in the tank.
• Diesel plus winter.

Practical tip: do not run permanently on a nearly empty tank. Sediment from the bottom goes into the filter, and condensate forms on the walls of empty space.

In short

• The symptoms live under load and at high revs.
• A blocked filter overloads the pump — the saving is paid for with a pump.
• On a diesel the filter is also a water separator: drain it, heed the sensor.
• In winter, summer-grade diesel waxes and blocks the filter completely.
• A gap between commanded and actual rail pressure is direct evidence.
