P0420: Why the Catalytic Converter "Fails"

P0420 means the catalytic converter on Bank 1 (the side of the engine containing cylinder 1) is operating below its expected efficiency threshold. The ECU detects this by comparing the signals from the upstream and downstream oxygen sensors: when their waveforms are nearly identical, the catalyst is no longer converting exhaust gases effectively. It is one of the most frequently logged DTC codes across all car brands.

What is a catalytic converter and why does it fail?

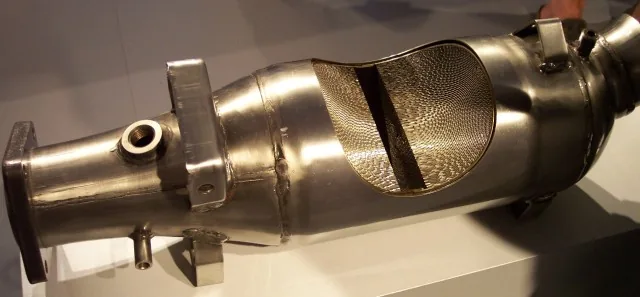

A catalytic converter is an exhaust-system component that transforms toxic gases — carbon monoxide (CO), unburned hydrocarbons (HC), and nitrogen oxides (NOx) — into safer compounds (CO₂, H₂O, N₂). Inside is a ceramic honeycomb structure coated with precious metals (platinum, palladium, rhodium) that accelerate the chemical reaction.

A catalytic converter fails for several distinct reasons:

• Physical destruction — the ceramic honeycomb cracks or melts due to excessive temperature from engine misfires
• Catalyst poisoning — lead, oil, or coolant residue coats the catalyst surface, blocking the chemical reaction
• Clogging — soot and carbon deposits restrict exhaust gas flow, causing backpressure
• Natural ageing — after 150,000–200,000 km, the precious metal coating wears out and efficiency drops below the OEM threshold

The ECU monitors converter health by reading the downstream oxygen sensor (post-cat). A properly working catalyst dampens the oxygen-sensor wave pattern. When the downstream signal mirrors the upstream one, the diagnostic logic concludes the catalyst is not doing its job and stores P0420.

What are the most common causes of P0420?

Contrary to what many drivers assume, a failed catalytic converter is not always the root cause. Several upstream problems can trigger the same code:

1. Faulty downstream oxygen sensor — the sensor sends an incorrect signal, making the ECU think the catalyst is inefficient. This is the cheapest fix.
2. Exhaust system leak — unmetered air entering the exhaust stream skews oxygen sensor readings and mimics catalyst failure.
3. Engine misfires — unburned fuel reaches the converter, ignites inside it, and physically melts the ceramic substrate. Address misfire codes (P0300–P0304) before touching the catalyst.
4. Rich fuel mixture — excess fuel raises exhaust temperature, accelerating catalyst degradation.
5. Oil burning — worn valve stem seals or piston rings let oil enter the combustion chamber; the burnt oil coats the catalyst surface.

P0420 is a symptom code, not a component-level diagnosis. Replacing the catalytic converter without checking the oxygen sensors and exhaust system first risks spending 500–2500 USD on the wrong repair.

How does a mechanic diagnose P0420?

Professional diagnosis of P0420 uses several methods to distinguish a bad converter from a sensor or exhaust problem:

• OBD-II scan — read the code, check MIL status, and review the freeze-frame data captured when the fault was stored. See the full technical description in our P0420 DTC catalogue entry.
• Temperature test — measure the exhaust pipe temperature before and after the converter with an infrared pyrometer. On a warm engine, the outlet should be at least 50–100 °C hotter than the inlet. If temperatures match, no chemical reaction is happening inside.
• Backpressure test — a pressure gauge screwed into the upstream oxygen sensor port measures exhaust backpressure at idle and at 2500 rpm. High backpressure points to a clogged converter.
• Oxygen sensor waveform analysis — an oscilloscope or graphing multimeter checks whether the downstream sensor signal is flat (good catalyst) or oscillating (bad catalyst or false reading).

AI analysis on the Car Diagnostics platform narrows the search by factoring in the car’s make and model. On a Toyota, P0420 is often caused by an exhaust leak. On a Volkswagen, it is more frequently a failed oxygen sensor.

How much does P0420 repair cost?

The repair cost for P0420 depends entirely on the root cause — and the range is wide:

Root cause	Estimated cost	Notes
Replace downstream oxygen sensor	50–150 USD	Most common and cheapest fix
Fix exhaust leak	20–100 USD	Weld a crack or replace a gasket
Replace catalytic converter (OEM)	500–2500 USD	Varies by brand; some cars have 2–4 converters
Replace catalytic converter (universal aftermarket)	150–500 USD	Requires welding; may not pass emissions testing

Can you drive with P0420? Yes — but with caveats. If the Check Engine light is steady (not flashing) and the engine runs smoothly, you can continue driving while planning a diagnosis. Ignoring the code can lead to a fully clogged converter that blocks the exhaust and stalls the engine.
