Mercedes C-Class and E-Class OBD-II Diagnostics: OM651, M271, 7G-Tronic, AIRMATIC

Mercedes-Benz C-Class (W204/W205) and E-Class (W212/W213) are extremely popular vehicles in Europe. With OM651, M271, M274 engines and the 7-speed 7G-Tronic gearbox, they have characteristic faults that diagnose well via OBD-II.

OM651 2.2 CDI (W204/W212): Four-Cylinder Diesel

P0087 — Rail Pressure OM651 (CP4)

OM651 (2008–2015) with Bosch CP4 pump:

• Rail Pressure Actual at idle: normal 250–350 bar
• Rail Pressure Actual at 3,000 RPM: < 1,400 bar → pump or injectors
• CP4 sensitive to water content and FAME (biodiesel > 7%)

CP4 failure signs:

• P0087 + hard starting
• Metal debris in injectors → injectors must be replaced after CP4 failure

P0299 — Underboost OM651

Most common code on W204 CDI after 100,000 km:

• Fouled VGT (Variable Geometry Turbo) — soot prevents vanes from moving
• Turbo actuator (vacuum or electric) — failure

Live Data:

• Boost Pressure Target vs Actual at 2,500 RPM: > 25 kPa difference → VGT or actuator
• VGT Position: not changing under load → vanes stuck

Solution: VGT cleaning in-situ (without removal, via WD-40 and warm-up cycle) or turbo replacement.

P0401 — EGR OM651

OM651 EGR with cooler:

• EGR Valve Position vs Command: > 15% difference → valve fouled
• Symptoms: black smoke on acceleration, rough idle

P2463 — DPF OM651

OM651 with Euro 5/6 DPF:

• DPF Soot Mass g: > 28 g → forced regeneration
• DPF Differential Pressure at 80 km/h: > 12 kPa → DPF not regenerating

City driving problem: Short trips prevent passive regeneration → active regeneration needed weekly in urban conditions.

---

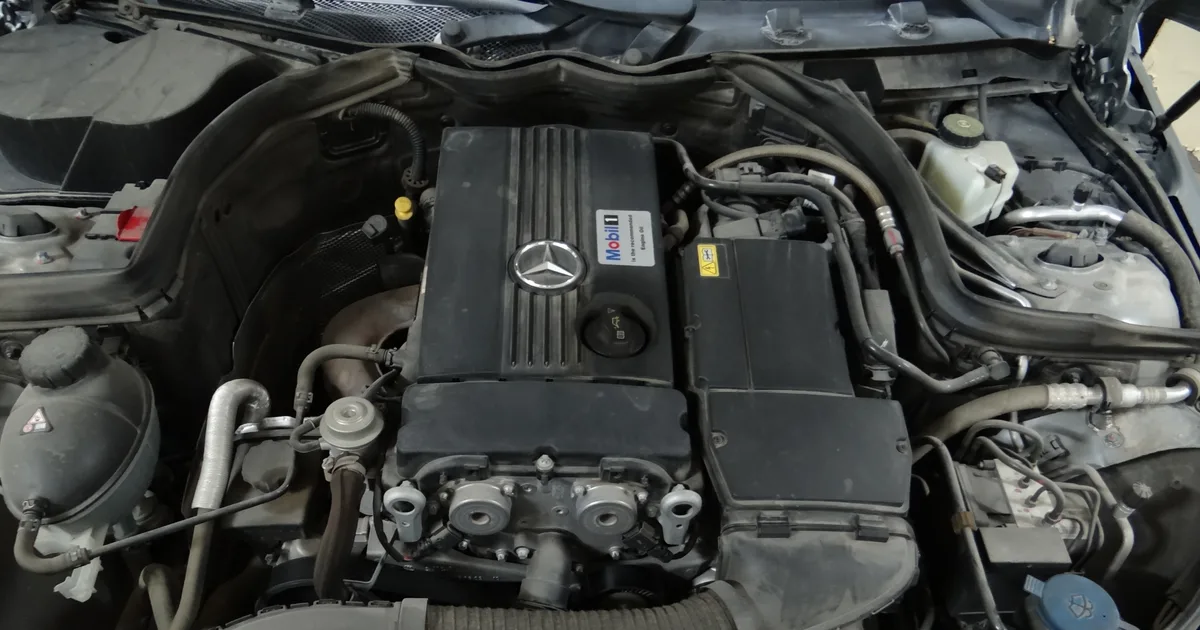

M271 1.8 CGI / Kompressor (W204, W212): Petrol

P0014 — Camshaft Timing (M271 Chain)

M271 Kompressor and M271 EVO (CGI) — characteristic timing chain issue:

• Chain stretches after 80–100,000 km due to guide rail wear
• P0014 — excessive camshaft advance (chain has “jumped”)

Live Data:

• Camshaft Position B1 Actual vs Target: > 10° deviation on cold start → chain stretch
• Characteristic rattle on cold start (similar to N47)

Critical: Unlike N47 (rear chain), M271 chain is at the front, but guide wear still leads to P0014 and potential breakage.

P0340 — Camshaft Position Sensor M271

• Chain wear leads to synchronisation loss
• Cam Sensor Signal Quality → unstable signal

---

M274 2.0 Turbo (W205/W213): Modern Petrol

P0299 — M274 Underboost

M274 (2014+) — 4-cylinder turbo with direct injection:

• Turbo hose leak on early W205
• Boost Pressure Target vs Actual > 30 kPa → leak or actuator

P2187 — GDI Carbon M274

M274 — direct injection only:

• STFT B1 > +8% → valve carbon deposits building
• Recommendation: Walnut Blasting after 80,000 km

---

7G-Tronic (722.9): 7-Speed Automatic

7G-Tronic — proven Mercedes gearbox, but requires ATF servicing.

P0741 — Torque Converter Clutch Slip

• P0741 = excessive torque converter clutch slip during lockup
• TCC Slip Speed: > 50 RPM in 7th gear → slipping
• Causes: contaminated ATF or worn converter clutch lining

P0722 — Output Shaft Speed Sensor

• Output Speed Sensor: 0 while moving → emergency mode (3rd gear)
• Input vs Output RPM Ratio doesn’t match current gear → sensor or mechanical issue

7G-Tronic ATF:

• Official interval “lifetime” → in practice every 60,000 km (Mercedes 236.14 or equivalent)
• Without change after 150,000 km → deposits in valve body → P0741, P0722

---

AIRMATIC (W212/W213, W204 AMG): Air Suspension

C1141 — AIRMATIC Compressor

Mercedes AIRMATIC — complex pneumatic system:

• C1141 = compressor not responding or overheated
• C1142 = system pressure below minimum

Live Data:

• Ride Height FL/FR/RL/RR: > 20 mm difference between sides → leak or sensor
• Air Reservoir Pressure: normal 12–16 bar; < 10 bar → compressor worn
• Compressor Runtime: > 15 min/hour → system has a leak

Most common leak locations:

1. Rear air spring bellows — rubber crack after 8–10 years
2. Valve block O-rings under the cover
3. Plastic tube fittings (ageing plastic)

---

Mercedes OBD-II Specifics

Mercedes uses CAN ISO 15765 with proprietary protocols (SDN, K-CAN):

• Basic Mode 01 PIDs: standard
• Extended parameters: via Mercedes Star Diagnosis/XENTRY or StarDiag-compatible scanner

Important extended PIDs:

• OM651 VGT Position — Star Diagnosis only
• 7G-Tronic ATF Temperature — Mode 22
• AIRMATIC Compressor Duty Cycle — requires Mercedes Extended

---

Summary: Mercedes C/E-Class

Model	Engine/System	Top Codes
W204/W212	OM651 2.2 CDI	P0087 rail, P0299 VGT, P0401 EGR
W204/W212	M271 CGI	P0014 chain, P0340 cam sensor
W205/W213	M274 2.0T	P0299 underboost, P2187 carbon
All	7G-Tronic	P0741 TCC, P0722 sensor
W212/W213 AMG	AIRMATIC	C1141 compressor, leaks

OM651 P0299 is the most common fault on diesel C-Class and E-Class: check VGT position in live data before expensive replacement work.
